Description

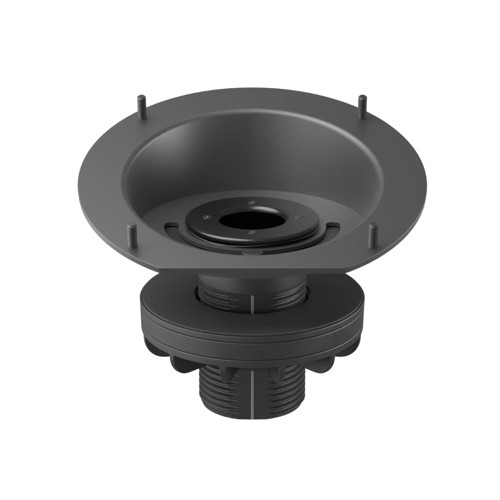

LOGITECH TAP RISER MOUNT
Designed for conference room tables with center-located grommet holes, the Riser Mount secures the touch controller in place and elevates the display angle to 30° for better visibility and easier operation while seated. Tap Riser Mount maintains a clean tabletop by routing cables through the grommet hole, and swivels 180° for convenient operation from both sides of the table.
RAISED PROFILE FOR AN EASIER REACH
Elevates the touch controller to a 30° display angle and swivels 180° for easier operation when reaching a center-of-table mounting location.
FITS MOST TABLES
Adjusts to tables up to 50mm in thickness, and through grommet holes from 2.0 - 3.5 in (51 - 89mm) in diameter.
INTEGRATED CABLE MANAGEMENT
Supports down-routing of cables through the grommet hole for a clean appearance.
What's in the Box
- Riser Mount Assembly
- Cable Cinch
- Documentation
Included Warranty
Logitech 2-Year Limited Hardware Warranty
Technical Specifications
DIMENSIONS
Tap with Riser Mount
Height: 4.01 in (102 mm)
Width: 9.6 in (244 mm)
Depth: 6.9 in (174 mm)
Display Angle
30° display angle
180° swivel
Compatibility
Logitech Tap IP
Logitech Tap
Table/Grommet
Table Thickness: 0.75 - 2.0 in (20 - 50 mm)
Grommet Diameter: 2.0 - 3.5 in (51 - 89 mm)
Documents
