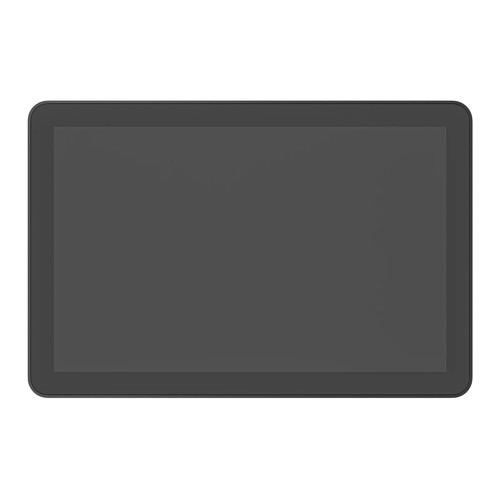

RIGHT PLACE, RIGHT TIME Tap Scheduler makes it easy to see meeting details and reserve a room for ad hoc or future meetings. Easily deploy as a purpose-built scheduling panel for leading room scheduling solutions to help workers find and claim the right space. GREEN MEANS GO Quickly find an open room through colored LED lights that show availability at a distance. CLEAN AND EASY INSTALL Included mounts and clean cabling help ensure a tidy and professional setup. PURPOSE-BUILT AS A SCHEDULING PANEL Tap Scheduler was designed for easy viewing and usability, with a spacious screen and a sleek, unobtrusive profile. Count on Tap Scheduler for reliable performance with durable components that are built to last. MAKE THE MOST OF YOUR SPACE Easily add Tap Scheduler to a variety of meeting rooms, from phone booths to video rooms to hangout nooks, helping employees quickly find the right meeting location. Simple installations and an intuitive user experience drive fast deployment and adoption.

Logitech Tap Scheduler Multi-surface mount (glass/drywall) Corner mount accessory Mullion mount Mounting hardware Documentation

Logitech 2-year limited hardware warranty

Dimensions Device-only Height: 6.5 in (165 mm) Width: 9.69 in (246.2 mm) Depth: 1.12 in (28.5 mm) Weight: 700 g (24.7 oz) Surface-mounted Height: 6.5 in (165 mm) Width: 9.69 in (246.2 mm) Depth: 1.24 in (31.4 mm) Mullion-mounted Height: 6.5 in (165 mm) Width: 11.52 in (292.6 mm) Depth: 1.75 in (44.5 mm) Details Screen Size: 10.1” (256.54 mm) diagonal IPS (In-Plane Switching) LCD Panel with LED Backlighting Resolution: 1280 x 800 resolution Touch: Capacitive, 10 points multi-touch Brightness: 400 nits Contrast: 1000:1 Anti Fingerprint: Oleophobic coating Viewing angle: 85 degrees (U/D/L/R) Position angle: 0 degrees (flat on mounting surface) General Specifications Integrated accelerometer Integrated ambient light sensor 100 mm x 100 mm VESA FDMI Cable exits: horizontal / vertical / center Power and Cables Power over Ethernet (PoE), IEEE 802.3af Type 1, Class 3 device. *Requires PoE enabled network or PoE Injector and ethernet cable (Not included) PORTS AND INTERFACES Ethernet: 10/100 Mbps WiFi: 802.11a/b/g/n/ac Bluetooth 5.0 (inactive, reserved for future use) Environmental Operating Temperature: 0 to 40°C Storage Temperature: -40 to 70°C Humidity: 10-95% Security Full Disk Encryption: AES-128 Data Encryption: Symmetric Keys, PKI Device Identity: Protected by device attestation Key Protection: Arm TrustZone Sustainability Graphite plastics: 54% post-consumer recycled material Certified carbon neutral

Logitech Tap Scheduler integrates with leading room scheduling solutions as a Microsoft Teams Panel Zoom Rooms Scheduling Display Robin-Powered scheduling panel Appspace RICOH Spaces Meetio scheduling panel Logitech CollabOS platform Logitech Sync Remote Management
