Description

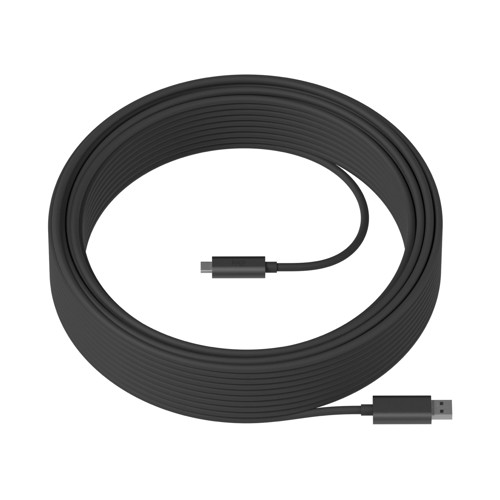

LOGITECH STRONG USB CABLE
With up to 15x the reach of ordinary USB 3.x cables, Logitech Strong USB lets you separate USB peripherals and a host PC by up to 45 meters (147.6 ft). These active optical cables are plenum-rated and Eca certified for commercial installation in walls, above ceilings, through raceways, and within standard ¾” conduit.
What's in the Box
Logitech Strong USB
USB-C pigtail extension cable: 152 mm (6 in)
Documentation
Included Warranty
Logitech 2-Year Limited Hardware Warranty
Technical Specifications
DIMENSIONS
Available Lengths
32.8 ft (10 m)
82 ft (25 m)
147.6 ft (45 m)
General
USB 3.2 Gen 2 active optical cable
USB Type A (male) to USB Type C (male)
Throughput: SuperSpeed USB 10 Gbps
Tensile strength: 200 newtons
Crush load: 1000 kg
Dynamic bend radius (minimum): 0.98 in (25 mm)
Conduit Diameter (minimum): 0.75 in (19 mm)
Compatibility
USB 2.0, 3.0, 3.1, and 3.2
Self-powered USB devices and USB hubs with external power supplies, including Logitech MeetUp, Logitech Rally Camera, and Logitech Tap.
Note: As an active optical cable, Logitech Strong USB does not deliver power to USB bus-powered devices such as webcams and speakerphones.
Certifications
Plenum Rated
Eca/IEC 60332-1-2 Compliant
