Description

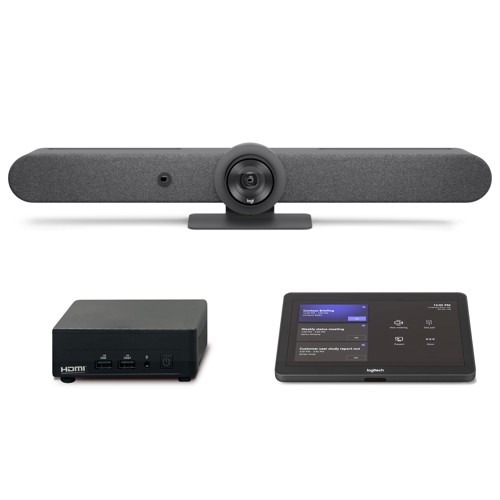

ALL-IN-ONE VIDEO BAR FOR MEDIUM AND LARGE ROOMS
Discover a remarkably simple all-in-one video conferencing setup with brilliant optics, AI-based audio, remote management with Logitech Sync, and more.EXPAND THE CONVERSATION
Add up to four Rally Mic Pods to extend the audio pick up range and provide convenient access to mute controls.ENSURE EVERYONE IS SEEN AND HEARD
AI video intelligence, advanced sound pickup, noise suppression, and continuous software improvements provide a clear and natural meeting experience for remote workers.
MANAGE REMOTELY WITH SYNC
Monitor room and device health, deploy updates, and modify settings, all from a single cloud-based platform.
Technical Specifications
Dimensions
Height: 6.46 in (164 mm)
Width: 2.99 ft (910 mm)
Depth: 5.14 in (130.5 mm)
Lens Depth: 1.13 in (28.8 mm)
Weight: 15.6 lbs (7.08 kg)
Details
Built-in Components: 6 beamforming microphones, PTZ camera, 2 speakers, AI Viewfinder, cable management and retention system, table stand, Logitech CollabOS platform
Enclosure: All-in-one enclosure with integrated table stand and patented speaker suspension system to eliminate vibration-induced camera shake and audio interference
Device Management: Logitech Sync
Displays Supported: 2
Display Resolution: Up to 1080p
Network Protocol Support: IPv4, IPv6
Proxy Support: IP based Proxy, FQDN based Proxy, Proxy using PAC file
Camera
Resolution: 4K, 1440p, 1080p, 900p, 720p, and SD at 30fps
Pan: Motorized ±25°
Tilt: Motorized ±15°
Zoom: 15X HD zoom (5X optical and 3X digital)
Diagonal Field of View: 90°
Horizontal Field of View: 82.1°
Vertical Field of View: 52.2°
Total Room Coverage (field of view + pan and tilt): 132.1° Horizontal x 82.2° Vertical
Speakers
Drivers: 2x 70 mm / 2.7 in
Sensitivity: 92dB SPL @1W, 99dB SPL @8.0W, both +/-2dB at ½ meter
Rated Power: 8W
THD: 1kHz < 2% at 1W
Speaker Sampling Rate: 48 kHz
Impedance: 4 Ohms
Microphones
Frequency Response: 90Hz – 16kHz
Sensitivity: >-36dBFS +/-1 dB @ 1Pa
Microphone data rate output: 48KHz
Pickup Range: Up to 23 ft (7m)
Beamforming Elements: 6 omnidirectional digital MEMS microphones forming 5 adaptive acoustic broadside beams
Audio processing: AEC (Acoustic Echo Cancellation), VAD (Voice Activity Detector)
Noise suppression: AI based de-noising algorithm
Add-on Mics: Supports up to 4 additional Rally Mic Pods and 2 Rally Mic Pod Hubs for larger conference rooms
RightSense™ Technologies
RightLight: Renders natural skin tones for each participant
RightSight: Primary camera frames the active speaker while the AI Viewfinder captures everyone in the room
RightSound: Distinguishes speech from other sounds to auto-level voices while suppressing background noise and echo
Grid View: Detects and frames all meeting participants in order to create equitable hybrid meeting experiences. To learn more, visit logitech.com/prosupport/gridview
Interfaces
HDMI Out: 2 (up to 1080p)
HDMI In: 1
USB: 3x Type A, 1x Type C
Network: 10/100/1G Ethernet
WiFi: 802.11a/b/g/n/ac
External Mic Input: Yes (proprietary input supports optional Rally Mic Pod, Rally Mic Pod Hub, and Rally Mic Pod Extension Cable)
Remote Control: Bluetooth® Low Energy
Power & Cables
Power supply: Auto-sensing
Operating Voltage/Power: 100-240V, 19V, 4.74A
Power Supply Dimensions: 5 in (127 mm) x 2.01 in (51 mm) x 1.18 in (30 mm)
DC Cable: 5 ft (1.5 m)
AC Cable: 4.9 ft (1 m)
HDMI 1.4 Cable: 6.5 ft (2 m)
USB A to USB C 3.0 Cable: 7.2 ft (2.2 m)
Environmental
Operating Temperature: 0 to 40°C
Storage Temperature: -40 to 70 °C
Humidity: 10 to 95%
BTU/hr: 57 idle, 64 in meeting
Security
Full Disk Encryption: AES-128
Data Encryption: Symmetric Keys, PKI
Device Identity: Protected by device attestation
Device Access: Authenticated using API
Key Protection: Arm TrustZone, RPMP
